Installing the RCPCH Digital Growth Charts React Component¶

The API and the charting component are built to work together but ship separately. The API calculation endpoint returns centiles and SDS for a child's growth measurements as a structured JSON Measurement object. The React Component Library takes that response as a prop and renders it as a familiar growth chart.

To see it in action, browse the Storybook or try the interactive demonstration. The component supports a range of use cases, and the charts can be tailored for families and children or for clinicians, from health visitors and midwives to paediatric endocrinology growth specialists.

The component does not yet support mobile screens; chart visualisation will need to be reimagined for smaller displays, and this is on the RCPCH roadmap.

React¶

The component is best embedded in a React application. It is published on npm and added to your package.json dependencies. Your app calls the API and passes the response into the component for charting.

For a head start, the RCPCH Digital Growth Charts React client is a working reference implementation with a simple data-entry form; its source is on GitHub and can be used as a starter.

The component is built for React 18.2 and is periodically updated to support later versions of React as they are released.

Props¶

A single <RCPCHChart> instance renders one chart. To show more than one chart (for example height and weight), render one instance per chart.

The table below lists the props accepted by <RCPCHChart>. The authoritative definition lives in the component source at RCPCHChart.types.ts, and the Storybook has live, interactive examples.

Prop	Type	Required	Default	Description
`title`	`string`	Yes	-	Title shown at the top of the chart.
`measurementMethod`	`'height' \\| 'weight' \\| 'ofc' \\| 'bmi'`	Yes	-	The measurement to plot.
`reference`	`'uk-who' \\| 'turner' \\| 'trisomy-21' \\| 'cdc' \\| 'trisomy-21-aap' \\| 'who'`	Yes	-	The growth reference dataset to chart against.
`sex`	`'male' \\| 'female'`	Yes	-	The child's sex.
`measurements`	`ClientMeasurementObject`	Yes	-	The API response data, keyed by measurement method.
`exportChartCallback`	`(svg?: any) => any`	Yes	-	Called with the chart SVG when an export is triggered.
`allowDuplicates`	`boolean`	No	`false`	Whether to plot measurements that share the same age and value.
`midParentalHeightData`	`MidParentalHeightObject`	No	-	Mid-parental height data to overlay on height charts.
`enableZoom`	`boolean`	No	`true`	Allow the user to zoom and pan the chart.
`chartType`	`'centile' \\| 'sds'`	No	`'centile'`	Whether to render a centile or an SDS chart.
`enableExport`	`boolean`	No	`true`	Show the export control and enable SVG export.
`clinicianFocus`	`boolean \\| null`	No	`true`	Optimise the chart for clinicians; set to `false` for a simpler family-facing view.
`theme`	`'monochrome' \\| 'traditional' \\| 'tanner1' \\| 'tanner2' \\| 'tanner3' \\| 'custom'`	No	`'monochrome'`	The visual theme. Select `custom` to apply `customThemeStyles`.
`height`	`number`	No	`800`	Chart height in pixels.
`width`	`number`	No	`1000`	Chart width in pixels.
`logoVariant`	`'top' \\| 'bottom' \\| 'legend'`	No	`'top'`	Placement of the RCPCH logo or acknowledgement.
`customThemeStyles`	`object`	No	-	Per-element style overrides applied when `theme` is `custom` (see below).

When theme is set to custom, customThemeStyles lets you override individual style groups: chartStyle, axisStyle, gridlineStyle, measurementStyle, centileStyle, sdsStyle and referenceStyle. Any group you omit falls back to the monochrome defaults.

Versioning¶

The charts use semver versioning, with documentation published for each release. Breaking changes are uncommon, but you will need to update and rebuild your application when new releases are published.

Styling¶

The charts ship with a monochrome theme by default. RCPCH also provide four other themes (Traditional, Tanner 1, Tanner 2, Tanner 3), and a custom theme lets you override most aspects of the look and feel. The Storybook docs document every prop the charts accept and how to wire them into your React project.

The RCPCH logo and chart version appear in the top left corner by default. To reduce the logo's prominence, the logoVariant prop can show an RCPCH acknowledgement statement at the foot of the chart instead.

Theme Builder¶

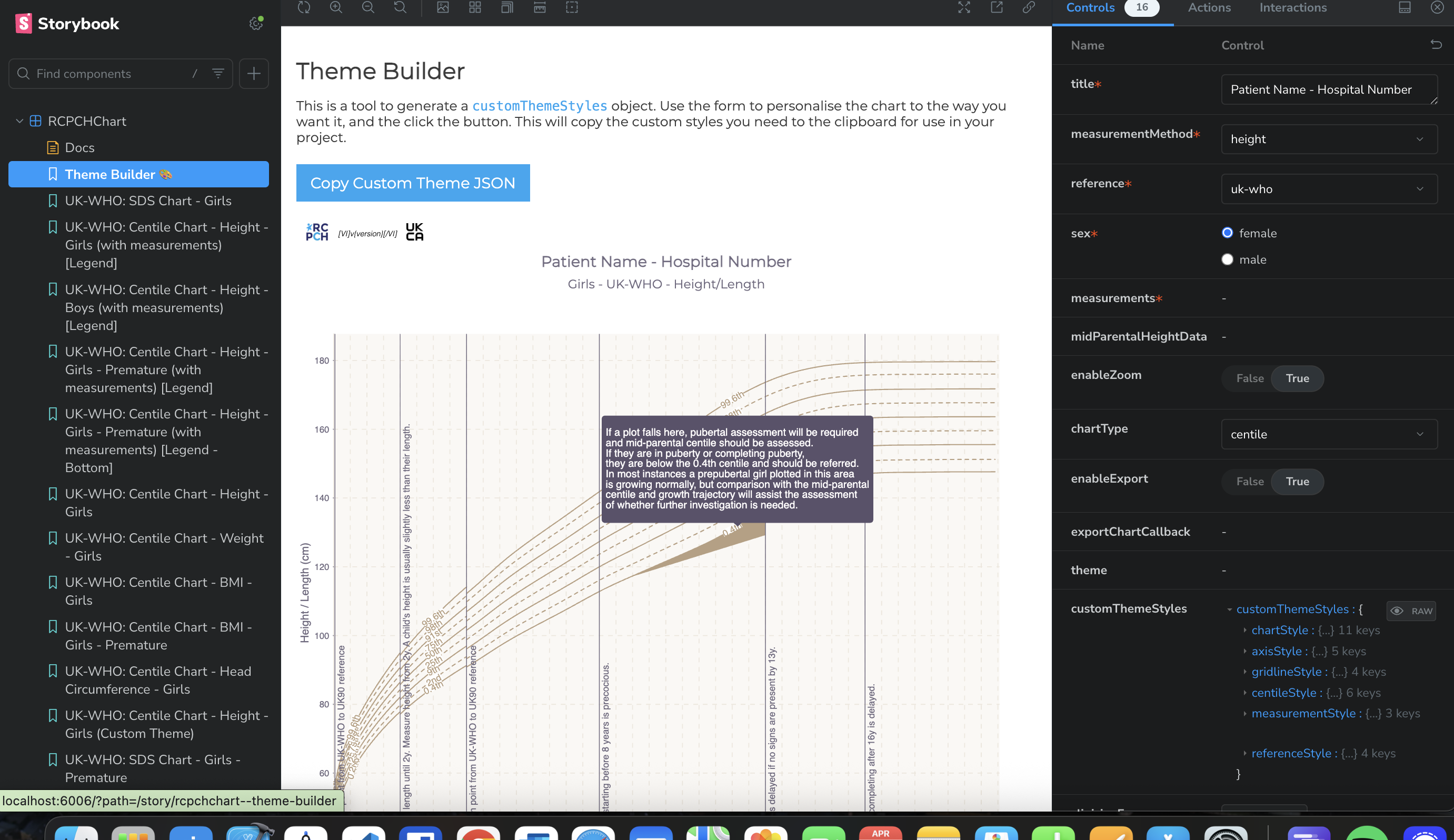

Select the custom theme to override style props such as fonts, colours, lines and backgrounds. The Storybook Theme Builder lets you adjust each element visually, then copies the resulting settings object to your clipboard to pass to the customThemeStyles prop.
theme-builder

What if I can't use React?¶

Many healthcare environments cannot use frameworks like React. For these cases the charts are also published on jsDelivr and unpkg, so you can import the JavaScript directly in the <head> of your page. This exposes the RCPCHGrowthCharts wrapper, which accepts the same props as above plus the id of the DOM element where the charts should render.
